WTB: MANA A/C Condenser

JhnRX7 · 02-12-2013, 11:45 AM

I am looking for an A/C condenser to complete my installation. It must be a MANA (dealer installed) condenser. There are two types of condensers and they are not interchangeable. Please see the pictures below for differences:

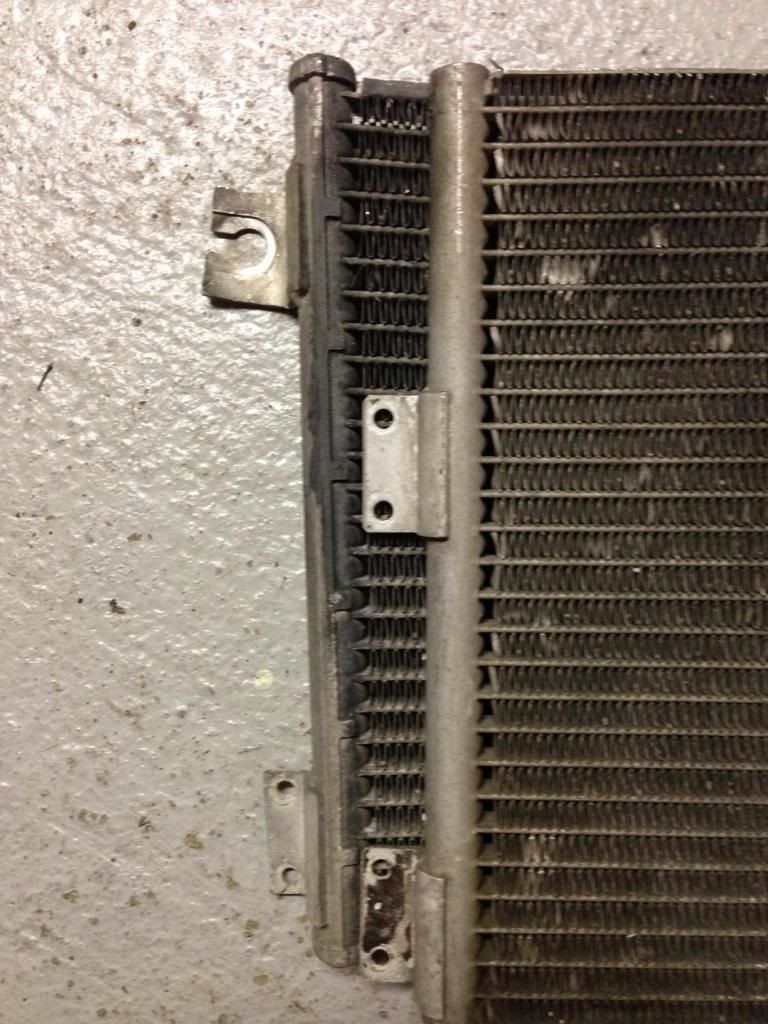

MANA on bottom, Denso on top.

Noticeable differences:

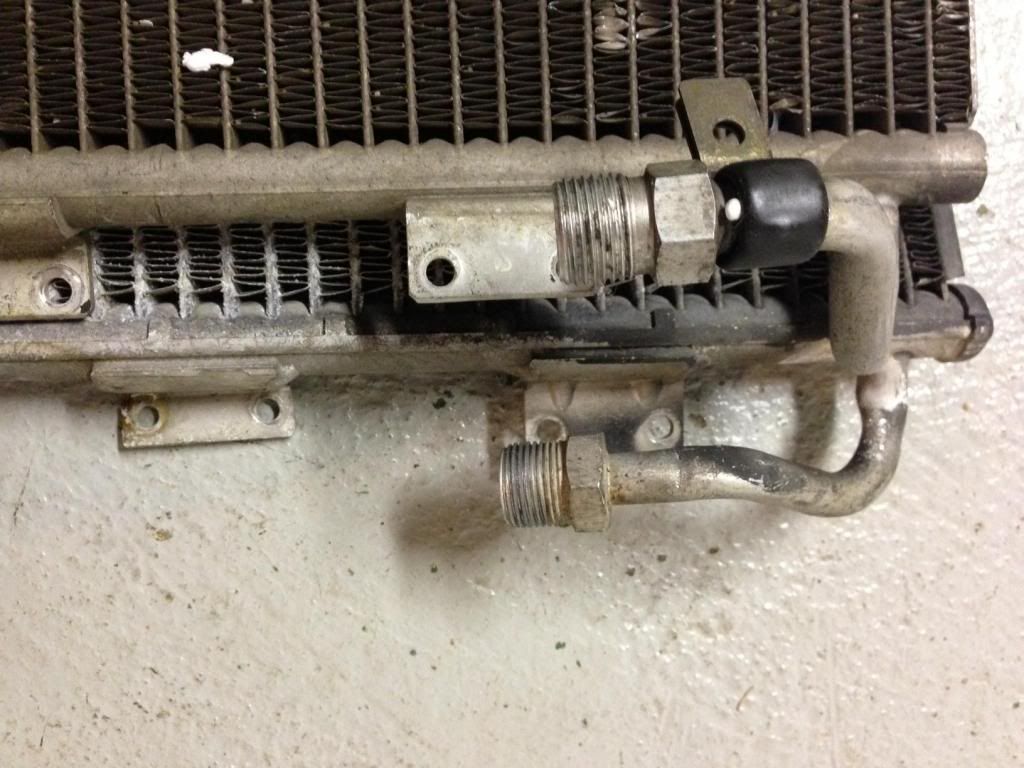

MANA large connection is threaded all the way to the hex head, denso unit has a gap between threads and hex head.

MANA end tanks have an embossed feature, denso end tanks are smooth.

MANA has 3 two hole brackets, Denso has 4 two hole brackets.

Let me know what you have.
